MRT-700 Underground Cable and Pipe Locator

Brand: MERYTRONIC gorlan team

Made in SPAIN

MRT-700 Professional and Smart Underground cable and Pipe Locator maps quickly, easily, and accurately energized and deenergized MV and LV distribution networks. MRT-700 specially designed for Utilities to trace lines and pipes in their distribution network.

MRT-700 Main Features:

  • Locates and traces underground pipes and cables
  • Detects 3 active and 2 passive frequencies
  • High Accuracy
  • 2D LCD Display
  • Easy and Intuitive performance
  • Bluetooth Connectivity
  • Correct Performance exceeds 10 km in length
  • Measures depth in cm and inch
  • Measures current amplitude of detected active frequency
  • Max. Depth: 5 meters
  • Depth measurement precision: 5%
  • Enclosure: IP54
  • Operation temperature: -20ºC / +55ºC

Description​​

The MRT-700 New-Generation Professional Underground pipe and cable locator with GPS and Bluetooth

  • MRT-700TX transmitter: Power Output is Selectable by user up to 10 Watts.
  • MRT-700TX Injects 3 active tracing frequencies: 575Hz, 8KHz and 32KHz by three different and optional way:

Direct connection with alligator clamps Deenergized electric cables, telephone cables, water, and gas metallic pipes, etc.

Induced with a Clamp Energized & Deenergized MV and LV cables, telephone cables, etc.

Built-in Antenna In case user, cannot reached cable, or its position is unknown, induction can be made from the earth surface using a built-in antenna



  • Accuracy: Measures loop impedance, making it possible to choose the best working frequency for each case.
  • MRT-700RX Receiver: Fully Digital 2D LCD display with complete information to trace underground cables in an easy drive and light receiver.
  • Versatility: Detects 3 active signals (sent by the MRT-700TX Transmitter) and 2 passive frequencies (50/60Hz).
  • Easy to use; Its built-in antenna configuration automatically calculates the target position with a digitally processed Algorithm.
  • Intuitive Performance: A large 2-Dimension LCD screen indicates distance and angle to the cable or pipe to be located by a very intuitive graphical representation.
  • Continuous depth: It automatically measures pipe’s and cable’s depth with high accuracy in real time.
  • 15-27KHz Radio band passive frequencies
  • 8-32KHz passive sonde frequencies
  • Automatic depth and current measurement
  • More than 5 meters deep
  • Bluetooth connection with compatible external GPS devices
  • Built-in GPS with accuracy <2 m
  • Operation modes (Full – Max – Peak – Null)
  • MRT-700RX Information Displayed:

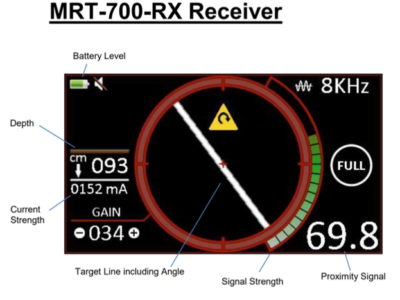

  • Depth – Current amplitude – 50Hz cables discrimination antenna – Gain – Compass for cable direction – Tracing frequency – Mode – Signal power.

‘Fully Digital 2D LCD display with complete information to trace underground cables in an easy drive and light receiver

Versatility; Detects 3 active signals (sent by the MRT-700TX Transmitter) and 2 passive frequencies (50/60Hz)

Easy to use; Its built-in antenna configuration automatically calculates the target position with a digitally processed Algorithm.

Intuitive Performance; A large 2-Dimension LCD screen indicates distance and angle to the cable or pipe to be located by a very intuitive graphical representation.

Continuous depth; It measures automatically pipe’s and cable’s depth with high accuracy in real time.

MRT-700 complies with security standard IEC61000-6-2 / 61000-6-4 / 61010-1 CATIV

MRT-700TX Transmitter Specifications

Output Frequencies: 640Hz, 8KHz and 32KHz

Connection Options: Direct, Induced or Built-in Antenna

Power Source: Built-in rechargeable Li-Ion Battery

Operation Time: >10h at max power

Weight: 3.1 Kg

MRT-700-RX Receiver Specifications

Trace Frequencies: 640Hz, 8KHz and 32KHz

Passive Power Trace: 50Hz, 60Hz

Power Source: Li-Ion Battery

Operation Time: >10h at max power

Weight: 1.5 Kg

Product Application

  • Underground Cable and Pipe Locator maps quickly
  • Energized and deenergized MV and LV distribution networks Locating
  • Metal Pipe Locating (Metallic Gas & Oil, Water Pipe, etc.)
  • Metal Cable Locating (Power, Telephone, Fiber optic with metallic Shield, Communication cables, etc.)

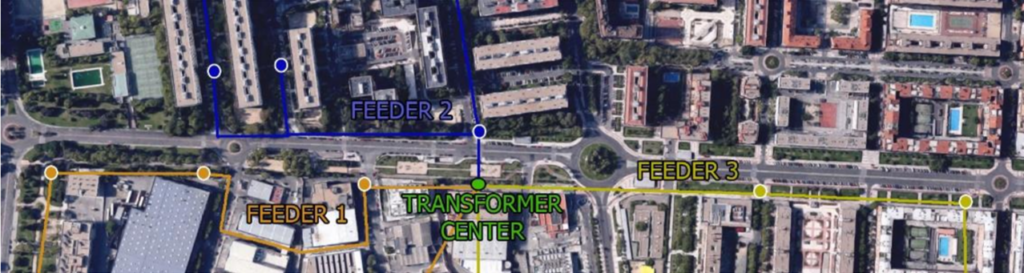

  • Mapping (Underground Utility Mapping)
  • Metal illegal connection detection (Power cable, Oil, Gas & Water illegal Connection)
  • Non-Metal Pipe and Channel locating with sonde

Gallery

Accessories​

Standard Equipment



  • Transmitter (1)
  • Receiver (1)
  • Induction clamp (1)
  • Direct mode cable (1)
  • Grounding Stake (30cm) (1)
  • Transmitter battery charger (1)
  • Receiver battery charger (1)
  • Car Lighter plug for TX and RX battery Charger
  • Soft carrying bag (1)
  • Instruction Manual (1)
  • Quick start guide (1)

OPTIONAL ACCESSORIES



  • Rogowski sensor for cable identification (1)
  • U sensor for cable identification (1)
  • Cable drum with 50-meter cable (1)
  • GridGIS Map Creator (Smartphone App) (1)
