Overview

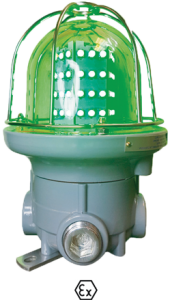

ATEX BEACON

ATEX Approved Signaling Solution
Brand: WatchGas Detection
Made in: Netherlands

The ATEX Beacon is designed to completely replace existing ATEX signal towers and other optical ATEX signaling solutions. The ATEX Beacon is fitted with 78 Ultra Bright RGB LEDs. These LEDs make sure the device is low on energy consumption. There are several standard patterns possible like a fancy loop, continuous lighting, looping, or flashing. Standard the device is set to emit red, green, blue, and yellow light. It is possible to program any color or pattern so you have instantly identifiable (alarm) status notifications at all times. Standard the device can be controlled by powering the inputs. Furthermore, a Modbus controlled relay is included in this device, this makes it possible to connect a sounder or any other device to the ATEX Beacon. To do so, the ATEX enclosure is equipped with two cable entries. The Beacon is ATEX certified, Zone 1, 2, 21, and 22, is highly resistant to dust and moist, IP-65, and is easy to install.

ATEX BEACON Main Features

  • Appropriate for many applications because of 9-30V DC power supply;
  • The housing is made of Aluminium LM06 and is epoxy coated to protect it from corrosion;
  • Programmable and controllable Modbus;
  • Low energy use;
  • Relay function for switching other equipment;
  • IP-65.

The ATEX Beacon is designed to completely replace existing ATEX signal towers and other optical ATEX signaling solutions.

The ATEX Beacon is fitted with 78 Ultra Bright RGB LEDs. These LEDs make sure the device is low on energy consumption. There are several standard patterns possible like a fancy loop, continuous lighting, looping or flashing. Standard the device is set to emit Red, Green, Blue and Yellow light. IIt is possible to program any color or pattern so you have instantly identifiable (alarm) status notifications at all times. Standard the device can be controlled by powering the inputs. Furthermore a Modbus controlled relay is included into this device, this makes it possible to connect a sounder or any other device to the ATEX Beacon. In order to do so the ATEX enclosure is equipped with two cable entries. The Beacon is ATEX certified, zone 1, 2, 21 and 22, is highly resistant to dust and moist, IP65 and is easy to install.

Specifications

Size 20,5 x 13,6 cm (7.87 x 5.11 in.)
Weight 1675grams (3.69lbs.
Operating Temperature -20 to +40°C (-4 to 104°F)
IP Rating IP 65
Cabel Entry 2 x ¾”NPT
Material Copper free aluminium LM6 (copper<0.05%) With epoxy coating
Operating Voltage 9 – 30V DC
Energy consumption 9W Max (Stand-by <0.1W)
Potential free relay contact 24V DC 2A
Max User Options Light effect, Colour selection
EX mark II 2 GD Ex d IIC T6 (INERIS 01ATEX0072x)
Can be used in: ATEX zone 1,2,21 and 22. Meets the standard IEC60079 and EN60079’



The contents are subject to change without prior notice.
