Overview

COMBI 16/64/80

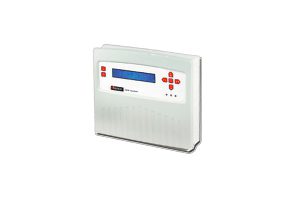

Combi Control Unit Wall Mount
Brand: WatchGas Detection
Made in: Netherlands

Combi has been designed to operate in the full range of environments from commercial premises through to heavy industrial applications which may require hazardous area sensing. Typical monitor locations are – public buildings, car parks, tunnels, breweries, boiler plant rooms, water treatment works, H&V control, manufacturing, process plants, horticulture, hotels, offices.

COMBI 16/64/80 Main Features

  • 1 to 64 addressable sensors;
  • 1-16 direct 4~20mA sensors - 2/3 wire;
  • 1 - 8 plugin direct catalytic cards;
  • Network up to 16 controllers enabling up to 1024 addressable sensors + direct sensors;
  • Single 4 core sensor network (addressable);
  • Parameter set up via pc or front panel;
  • 3 alarm levels with time to alarm option;
  • Addressable relay module - 4, 8, and 32-way option;
  • Continuous data logging via pc - option (combi soft);
  • Automatic safety check diagnostics/system surveillance;
  • System management via remote access.

Description

Combi 16 Direct has been designed to operate in the full range of environments from commercial premises through to heavy industrial applications which may require hazardous area sensing.

Typical monitor locations are - public buildings, car parks, tunnels, breweries, boiler plant rooms, water treat- ment works, H&V control, manufacturing, process plants, horticulture, hotels, offices. Each gas sensor continuously monitors the atmosphere reporting any hazardous conditions to the control unit for display by the alpha numeric screen indicating the reporting sensor, gas type, concentration and alarm status. Alarm levels that are exceeded will automatically activate a variety of signal outputs including analogue/ digital data and user selectable relays. The Combi 16-Direct system operates on a 2/3 core cable system, each sensor being wired directly to the control unit. Eight of the above sensors will accept mV catalytic detectors by the use of plug in modules 007-201. Larger systems can be achieved using multiple combi units housed in a 19” rack based system or having a network controller supervising up to 16 Combi units

Sensor options

  • 1 to 64 addressable sensors
  • 1-16 direct 4~20mA sensors - 2/3 wire
  • 1 - 8 plug in direct catalytic cards
  • Network up to 16 controllers enabling up to 1024
  • addressable sensors + direct sensors
  • Single 4 core sensor network (addressable)
  • Parameter set up via pc or front panel
  • 3 alarm levels with time to alarm option
  • Addressable relay module - 4, 8 and 32 way option
  • Continuous data logging via pc - option (combi soft)
  • Automatic safety check diagnostics/system surveillance
  • System management via remote access

Product Application:

Key Features

  • Network up to 16 controllers enabling up to 256 direct sensors
  • Parameter set-up via PC or front panel
  • 3 alarm levels with time to alarm option
  • Automatic safety check diagnostics/system surveillance

The contents are subject to change without prior notice.
