Overview

POLI

Advanced Multi-Gas Detector

Brand: WatchGas Detection

Made in: Netherlands

The POLI multi-gas detectors offer 4 or 5-gas monitoring of Oxygen (O2), combustibles (LEL), toxic, Carbon Dioxide (CO2), and volatile organic vapors (VOCs). The MP400 and MP400P are basic models of O2, LEL, Carbon Monoxide (CO), and Hydrogen Sulphide (H2S) configuration in diffusion- and pump for compliance application. The MP400S adopts a full range of sensor selection, e.g. electrochemical (EC), pellistor, non-dispersive infrared (NDIR), and photo-ionization detector (PID) in pumped version. An option of wireless communication enables real-time monitoring of gas readings and alarm status including Man Down Alarm from remote locations for better visibility and faster response.

POLI Main Features

Available in diffusion- or pumped version;
Man Down Alarm with real-time remote wireless notification;
IP-65 (pumped versions) and IP-67 (diffusion versions);
With water and dust resistant case;
Real-time gas concentration readings and alarm status enabled by state-of-the-art wireless technology;
Large graphical display icon-driven user interface through intuitive, simple-to-operate two-button user interface;
Easy access to pump, sensor, filter, and battery;
Over 30 interchangeable sensor options, including PID for VOC, NDIR and catalytic for combustibles, and NDIR for CO2;
Intelligent sensors store calibration data, so they can be swapped in the field.

Description

The POLI multi-gas meters offer 4- or 5-gas monitoring of toxic gases, Oxygen (O2), combustibles (LEL), Carbon Dioxide (CO2) and Volatile organic compounds (VOCs).
The POLI with pump) is an advanced model with builtin pump that allows a full selection of sensors for a wide range of applications, including Confined Space Entry, while the POLI is a basic, 4-gas diffusion detector for worker safety at hazardous locations. Smart sensors carry calibration and ID information with them for quick exchange in the field during Hazmat response. Both versions POLI have a rugged construction and easy-tolearn 2-button operation. The unique Man-Down alarm feature notifies nearby workers if the user becomes incapacitated.

DETECTOR SPECIFICATIONS

Size	140mm x 84mm x 42mm
Weight	435g (pumped), 385g (diffusion)
Sensor Technology	Over 30 interchangeable and field-replaceable sensors including PID for VOC's, EC for toxic and O2, Pellistor for LEL and NDIR for LEL, vol% and CO2
Temperature	-20°C ~ +50°C
Humidity	5% ~ 95% (non-condensing)
Alarm Type	High alarm, low alarm, TWA alarm, STEL alarm, Man-Down alarm with pre-alarm, on-screen indication of alarm conditions
Alarm Signal	Acoustic: 95dB @ 30cm Visual: Flashing bright red LEDs Vibration
Panic Alarm	Yes
Display	128 x 128 graphical 45 x 44 mm LCD Display, with LED backlight for enhanced readability. Automatic screen 'flip' feature
Calibration	2-point calibration, zero and span. Power-on zero calibration with user confirmation. MonoDock allows automatic bump test and calibration.
Data Log	Continuous datalogging (6 months for 4 sensors at 1-minute intervals, 24 hours/day and 7 days/week)
Battery Operating Time	Diffusive with LEL Cat: 16h Pumped with LEL Cat: 12h Diffusive with LEL IR: 60h Pumped with LEL IR: 28h Only EC sensors: 60h
Measurement	Built-in pump (sample from up to 30m) or diffusion
Housing	Polycarbonate and rubber
Response time T90	Sensors: 15 sec (LEL/CO/H2S/O2) Other gases may vary (TN4: Sensor Technical Data Summeries) Hoses: 10m: 60s/ 20m: 90s/ 30m: 120s
Accuracy Deviation	2-3%
IP-Rating	IP65 (pump versions) IP67 (diffusion versions)
EMI/RFI	Compliant with EMC 2014/30/EU
Safety Certifications	UL: Class I, Div 1, Group A,B,C,D, T4, -20°C ≤ Tamb ≤ +50°C IECEX: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga CE: Conformité Européenne
Warranty	2 years on instruments 2 years on sensors for pelistor LEL, LEL/%vol, O2, CO, CO2, H2S, SO2, HCN, NO, NO2 and PH3 1 year on other sensors

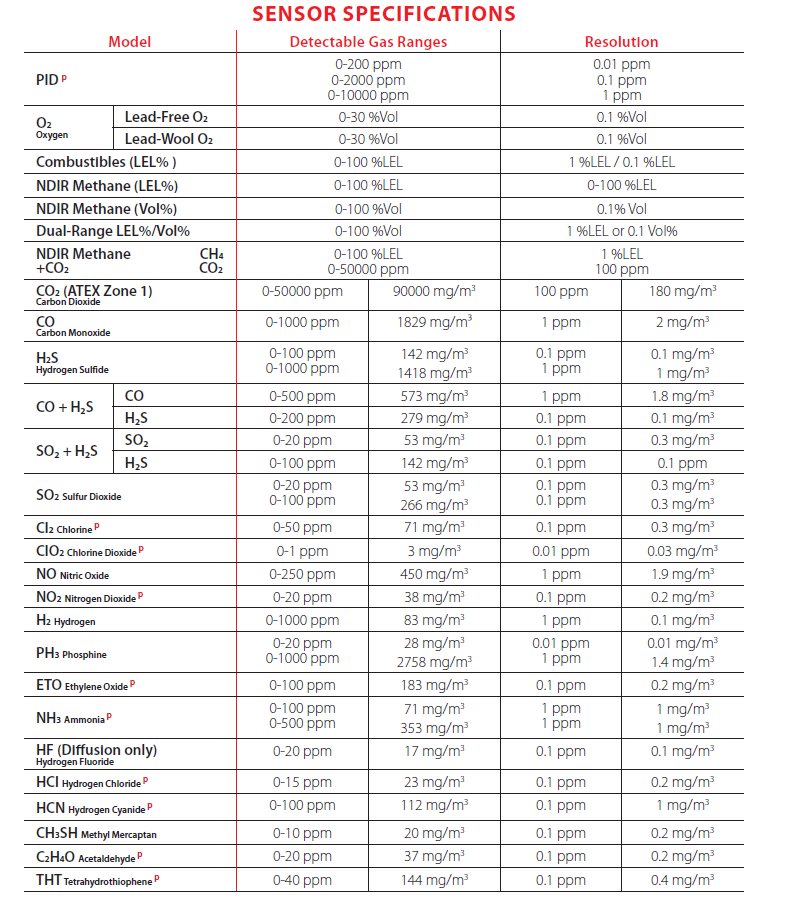

SENSOR SPECIFICATIONS

Product Application:

Confined spaces
Personal PID detector | Personal safety
Beverages
Installation market
Soil remediation
Multi gas personal monitor in industries such as:
(Petro)chemical industry
Environmental
Transport
Oil and Gas industry

Key Features

Wide selection of “plug-and-play” Smart Sensors
Up to 60h rechargeable Li-ion battery
Pump-off switch saves battery for longer operation time
Automatic flow fault on pump
360-Degree LED alarm bar
Man-Down alarm
USB Micro charger & communications cable
Flip screen
6 Months continuous datalogging
Durable double shot outer case
Combination 2 IR/PID sensors possible!
Max. 30 meter hose

Gallery

Accessories

Standard Equipment:

Calibration adapter
Calibration certificate
USB data cable
Piece of hose
Filter
Manual
Charging adapter

OPTIONAL ACCESSORIES:

Ball Float
Last-O-More Gas Sampling Hose
Filters
Regulators
Calibration Gases

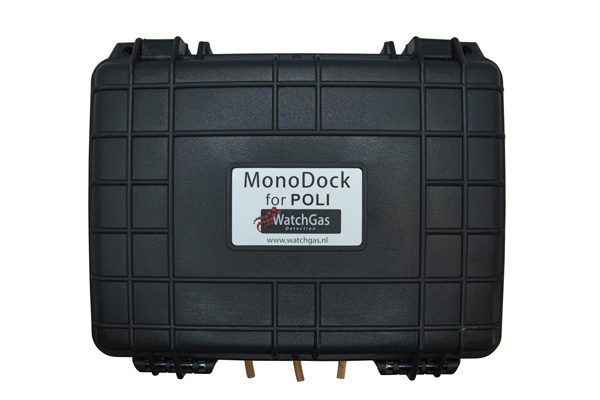

POLI MonoDock
WatchGas POLI Case
POLI 4-Way Stackable Charging Cradle

XDI

XDIwin

15JP1-30JP1

WATCHGAS 101
