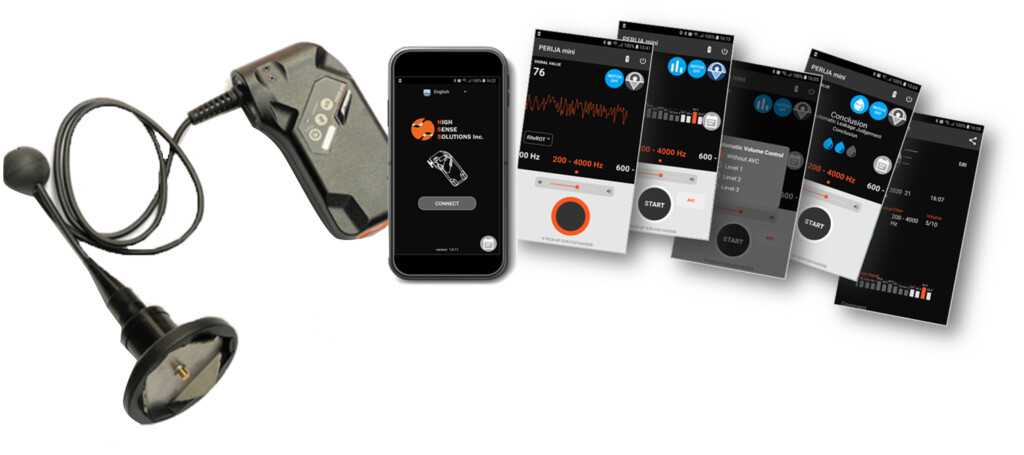

PERIJA Mini VPICK-UP Smart Acoustic Water Leak Detector with Leakage Judgment Mode

Brand: High Sense Solutions Inc.

Made in Canada



PERIJA is equipped with Water Leakage Judgment mode and is well-suited to water leak surveying and pinpointing on plastic pipes like PVC and PE.
PERIJA Mini™ is a smart acoustic water leak detector as a professional NRW (Non-Revenue Water) Reduction equipment. This newest water leak detector works in a Mini™ wide frequency range with four band-pass filters, notch filters and has been equipped with an additional filteROT™ function.
This accurate, sensitive, and innovative water leak detection system has been equipped with Internal Bluetooth‌ to communicate data with Android-based smartphones and tablets.
PERIJA Mini VPICK-UP™ featuring an accurate surveying signals comparison system enables the operator to pinpoint difficult leaks.
WATER LEAKAGE JUDGMENT mode is a smart and innovative operation mode that helps the user decide the leakages.



PERIJA Mini VPICK-UP™ Main Features:
– External Sensitive Piezo Electric sensor (Suitable for Surveying and Pinpointing also valve, meter… soundcheck)
– Wide frequency range (up to 4000 Hz)
– 4 Band-pass filters, 2 Notch filters, and filteROT™ Mode
– Automatic Water Leakage Judgment Mode
– Leak noise level recording function
– Internal Bluetooth to communicate data with Android-based smartphones and tablets.
– PERIJA Mini Android APP (for device operation display, documenting, analyzing, and reporting)
– With internal rechargeable Li-ion Battery

Description

PERIJA Mini VPICK-UP Smart Acoustic Water Leak Detector with Leakage Judgment Mode (NRW Reduction Equipment)

PERIJA Mini VPICK-UP™ is a smart and sensitive acoustic water leak detector that equipped with external piezo electric sensor and innovative design in extremely small size.

  • Wide Frequency Range, 4 Band-Pass Filters and filteROT Mode

200 to 4000 Hz frequency range and 4 band-pass filters help users to find leakage at various depths and all types of pipe materials. Users also can use filteROT™ Mode to understand and choose the best filter in their project.

  • Leak Noise Level Recording Function

When PERIJA Mini VPICK-UP™ connects to smartphones or tablets, then the minimum and average noise levels of places would be displayed with GPS Data. This feature would be useful for checking, pinpointing, analyzing, and reporting.

  • Live Bluetooth® Remote Display and Controlling

  Users can control the PERIJA Mini™ with multifunction keys also with the PERIJA Mini APP (Android version is available). Signal levels, GPS data, Selected filters, and all other functions are available on the Application screen in mutual communication.

PERIJA Mini VPro
    • Automatic Leakage Judgment Mode (ALJ)

    By using a cutting-edge algorithm, PERIJA Mini™ can make a judgment about the possibility of leakage on the target pipeline in 4 levels.

    • Infrared Acoustic Activation Mode (IRAA)

    PERIJA Mini™ uses the nonmechanical button’s sensor to stream on/off the audio as a Mute Key. (suitable for reflective surfaces)

    • Rechargeable battery

    PERIJA Mini™ follows High Sense Solutions Inc’s policy in designing environmentally friendly products. PERIJA Mini™ has been equipped with a Li-ion rechargeable battery that is unreachable. Users can charge the internal battery with any USB Port.

    • Dustproof and water-resistant structure

    PERIJA Mini™ has been equipped with dustproof and water-resistant functions. In the light raining and splashing time at operational site, PERIJA Mini™ has been completely protected.

Product Application

  • Professional Acoustic Leak Detection
  • Valve Leak Detection and Sound Check
  • Pinpointing of water leakage
  • Water Meter Leak Detection and Sound Check
  • Water Leak Surveying on metal and plastic pipes like PVC and PE.

Gallery

Accessories

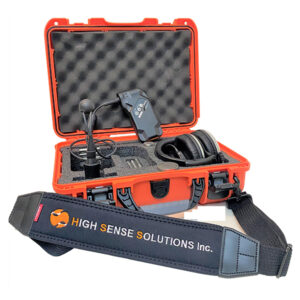

Standard Equipment

  • PERIJA Mini VPICK-UP Main Unit (1)
  • Stereo Headphone (1)
  • USB A to USB A Cable (1)
  • 3 Mini Contact Rod and Plate (1)
  • 3 Contact Rod and Plate (1)
  • AIRCELL Shoulder Strap (1)
  • Hard Caring case
  • PERIJA Mini Android APP
  • OPTIONAL ACCESSORIES

The contents are subject to change without prior notice.
